WENO¶
WENO Link¶
- OneFLOW-WENO schemes.
- Efficient Finite Difference WENO Scheme for Hyperbolic Systems with Non-Conservative Products and Stiff Source Terms.
- Prof. Chi-Wang Shu: Mathematics in Scientific Computing.
- High-Order CFD Solvers on Three-Dimensional Unstructured Meshes: Parallel Implementation of RKDG Method with WENO Limiter and Momentum Sources.
Compact Weighted ENO¶
- Compact Reconstruction Schemes with Weighted ENO Limiting for Hyperbolic Conservation Laws
Codes¶
PyWENO¶
PyWENO contains two modules to help authors generate WENO codes
Visualization¶
| Text Only | |
|---|---|
1 | |
\[

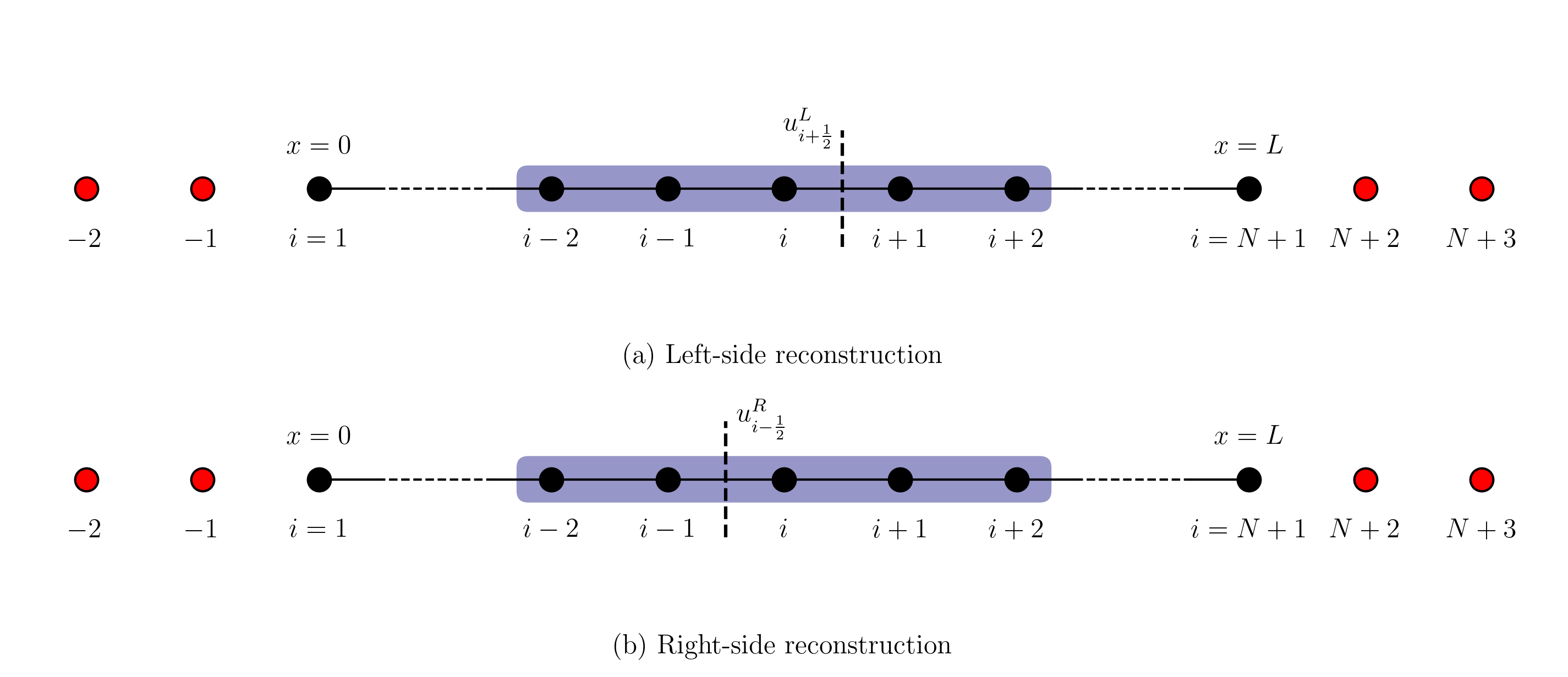

f^{+}(u)=\cfrac{1}{2}(f(u)+\alpha{u}), \quad f^{-}(u)=\cfrac{1}{2}(f(u)-\alpha{u})
\]
\[
\begin{align}
u^{L}_{i+1/2} & = w^{L}_{0}(\cfrac{1}{3}u_{i-2}-\cfrac{7}{6}u_{i-1}+\cfrac{11}{6}u_{i})\\
&+w^{L}_{1}(-\cfrac{1}{6}u_{i-1}+\cfrac{5}{6}u_{i}+\cfrac{1}{3}u_{i+1})\\
&+w^{L}_{2}(\cfrac{1}{3}u_{i}+\cfrac{5}{6}u_{i+1}-\cfrac{1}{6}u_{i+2})\\
u^{R}_{i-1/2}& = w^{R}_{0}(-\cfrac{1}{6}u_{i-2}+\cfrac{5}{6}u_{i-1}+\cfrac{1}{3}u_{i})\\
& + w^{R}_{1}(\cfrac{1}{3}u_{i-1}+\cfrac{5}{6}u_{i}-\cfrac{1}{6}u_{i+1})\\
& + w^{R}_{2}(\cfrac{11}{6}u_{i}-\cfrac{7}{6}u_{i+1}+\cfrac{1}{3}u_{i+2})
\end{align}
\]
\[
\begin{align}
u^{L}_{i+1/2} & = w^{L}_{0}(\cfrac{1}{3}u_{i-2}-\cfrac{7}{6}u_{i-1}+\cfrac{11}{6}u_{i})\\
&+w^{L}_{1}(-\cfrac{1}{6}u_{i-1}+\cfrac{5}{6}u_{i}+\cfrac{1}{3}u_{i+1})\\
&+w^{L}_{2}(\cfrac{1}{3}u_{i}+\cfrac{5}{6}u_{i+1}-\cfrac{1}{6}u_{i+2})\\
u^{R}_{i+1/2}& = w^{R}_{0}(-\cfrac{1}{6}u_{i-1}+\cfrac{5}{6}u_{i}+\cfrac{1}{3}u_{i+1})\\
& + w^{R}_{1}(\cfrac{1}{3}u_{i}+\cfrac{5}{6}u_{i+1}-\cfrac{1}{6}u_{i+2})\\
& + w^{R}_{2}(\cfrac{11}{6}u_{i+1}-\cfrac{7}{6}u_{i+2}+\cfrac{1}{3}u_{i+3})
\end{align}
\]
| Text Only | |
|---|---|
1 2 3 4 5 | |
there are constants \(c_{rj}\) such that the reconstructed value at the cell boundary \({x}_{i+\frac{1}{2}}\)
\[
{v}_{i+\frac{1}{2}}=\sum_{j=0}^{k-1}c_{rj}\bar{v}_{i-r+j}
\]
We summarize this as follows: given the \(k\) cell averages
\[
\bar{v}_{i-r},\bar{v}_{i-r+1}\dots,\bar{v}_{i-r+k-1}
\]
there are constants \(c_{rj}\) such that the reconstructed value at the cell boundary \(x_{i+1/2}\)
\[
v_{i+1/2}=c_{r0}\bar{v}_{i-r}+c_{r1}\bar{v}_{i-r+1}+\dots+c_{r,k-1}\bar{v}_{i-r+k-1}\\
\]
\[
v_{i+1/2}=\sum_{j=0}^{k-1}c_{rj}\bar{v}_{i-r+j}\\
\]

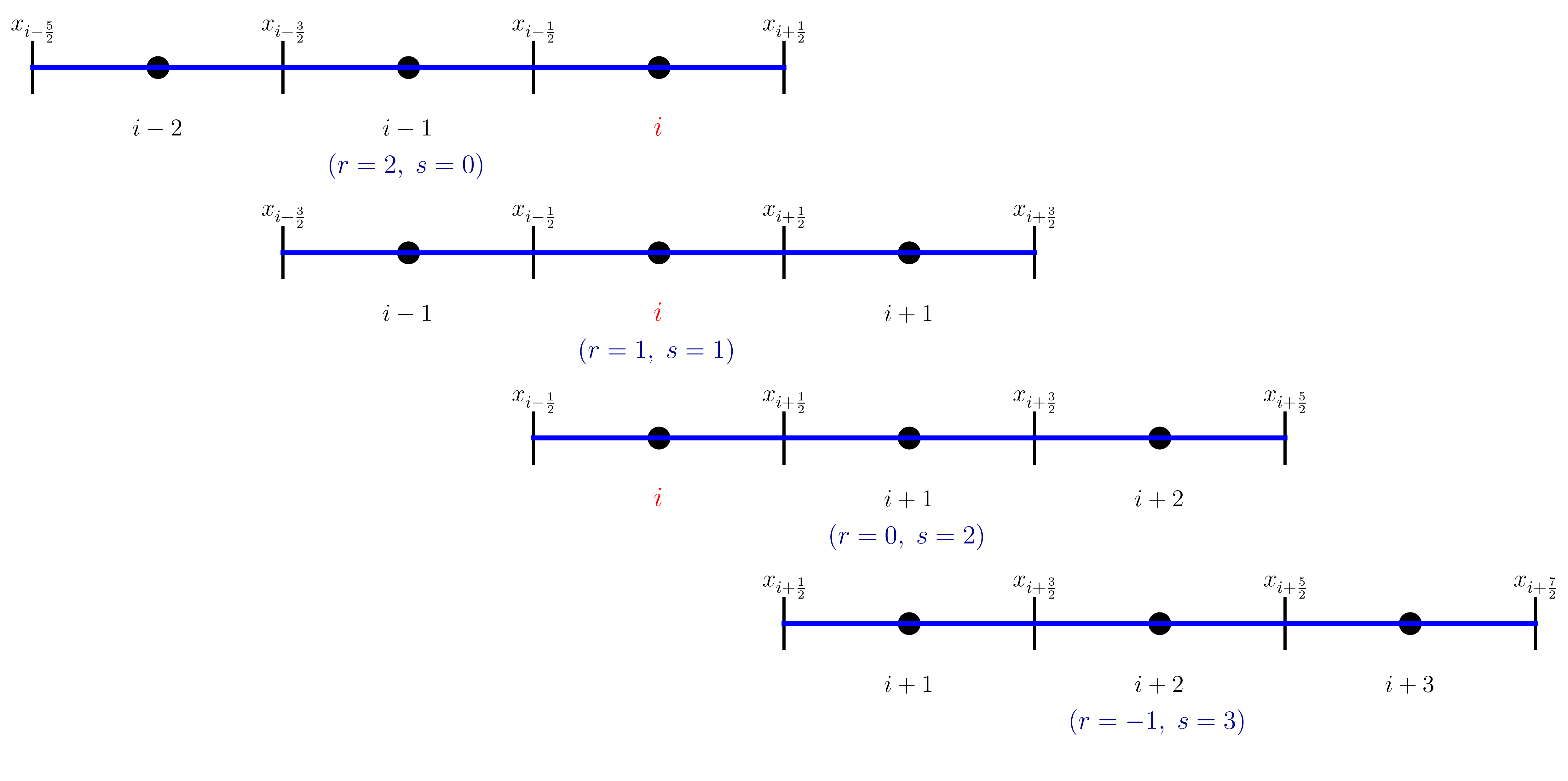

对于\(k=3\)，有
\[
v_{i+1/2}=c_{r0}\bar{v}_{i-r}+c_{r1}\bar{v}_{i-r+1}+c_{r,k-1}\bar{v}_{i-r+2}\\
\]
具体为
\[
\begin{array}{l}
v_{i+1/2}^{-1}=&c_{-1,0}&\bar{v}_{i+1}&+&c_{-1,1}&\bar{v}_{i+2}&+&c_{-1,2}&\bar{v}_{i+3}\\
v_{i+1/2}^{0}=&c_{0,0}&\bar{v}_{i}&+&c_{0,1}&\bar{v}_{i+1}&+&c_{0,2}&\bar{v}_{i+2}\\
v_{i+1/2}^{1}=&c_{1,0}&\bar{v}_{i-1}&+&c_{1,1}&\bar{v}_{i}&+&c_{1,2}&\bar{v}_{i+1}\\
v_{i+1/2}^{2}=&c_{2,0}&\bar{v}_{i-2}&+&c_{2,1}&\bar{v}_{i-1}&+&c_{2,2}&\bar{v}_{i}\\
\end{array}
\]
这应该对应下面的系数，实际上是从右到左的模板顺序
| Text Only | |
|---|---|
1 2 3 4 5 | |
如果按照习惯，从左到右计算，有
| Text Only | |
|---|---|
1 2 3 4 5 | |
Given the location \(I_i\) and the order of accuracy \(k\), we first choose a “stencil”, based on \(r\) cells to the left, \(s\) cells to the right, and \(I_i\) itself if \(r, s ≥ 0\), with \(r + s +1= k\):
\[
S(i)\equiv\{I_{i-r},\dots,I_{i+s}\}
\]
\[
v_{i+1/2} = c_{20}\bar{v}_{i-2} + c_{21}\bar{v}_{i-1} + c_{22}\bar{v}_{i} + c_{23}\bar{v}_{i+1}
\]
\[
v_{i+1/2}^{(2)} = c_{2,0}\,\bar{v}_{i-2} + c_{2,1}\,\bar{v}_{i-1} + c_{2,2}\,\bar{v}_{i} + c_{2,3}\,\bar{v}_{i+1}
\]
\[
v_{i+1/2}^{(0)} = \frac{1}{3}\,\bar{v}_{i} + \frac{5}{6}\,\bar{v}_{i+1} - \frac{1}{6}\,\bar{v}_{i+2}
\]
\[
\begin{alignat}{3}
v_{i+1/2}^{(2)} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2}^{(1)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{(0)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2}^{(-1)} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3}
\end{alignat}
\]
我们仔细考察有：
\[
\begin{alignat}{3}
v_{i+1/2}^{L(i-2,i-1,i)} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2}^{L(i-1,i,i+1)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{L(i,i+1,i+2)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
\end{alignat}
\]
\[
\begin{alignat}{3}
v_{i+1/2}^{R(i-1,i,i+1)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{R(i,i+1,i+2)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2}^{R(i+1,i+2,i+3)} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3}
\end{alignat}
\]
\[
\begin{alignat}{3}
v_{i+1/2}^{L(i-1,i,i+1)} &= v_{i+1/2}^{R(i-1,i,i+1)} \\
v_{i+1/2}^{L(i,i+1,i+2)} &= v_{i+1/2}^{R(i,i+1,i+2)} \\
\end{alignat}
\]
Given the location \(I_{i}\) and the order of accuracy \(k\), we first choose a “stencil”, based on \(r\) cells to the left, \(s\) cells to the right, and \(I_{i}\) itself if \(r, s ≥ 0\), with \(r + s +1= k\):
\[
S(i)\equiv \{I_{i-r},\cdots,I_{i+s}\}
\]
There is a unique polynomial of degree at most \(k−1 = r+s\), denoted by \(p(x)\) (we will drop the subscript i when it does not cause confusion), whose cell average in each of the cells in \(S(i)\) agrees with that of \(v(x)\):
\[
\cfrac{1}{\Delta x_{j}}\int_{x_{j-\frac{1}{2}}}^{x_{j+\frac{1}{2}}}p(\xi)d\xi=\bar{v}_{j},\quad
j=i-r,\cdots,i+s
\]
\[
{v}^{-}_{i+\frac{1}{2}}=\sum_{j=0}^{k-1}c_{rj}\bar{v}_{i-r+j},\quad
{v}^{+}_{i-\frac{1}{2}}=\sum_{j=0}^{k-1}\tilde c_{rj}\bar{v}_{i-r+j}
\]
\[
\begin{alignat}{3}
v_{i+1/2}^{L,r=2} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2}^{L,r=1} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{L,r=0} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
\end{alignat}
\]
\[
\tilde{c}_{rj}=c_{r-1,j}
\]
\[
\begin{array}{l}
{v}^{+}_{i-\frac{1}{2}}&=&\sum_{j=0}^{k-1}\tilde c_{rj}\bar{v}_{i-r+j}
=\sum_{j=0}^{2}\tilde c_{rj}\bar{v}_{i-r+j}\\
&=&\tilde c_{r,0}\bar{v}_{i-r}+\tilde c_{r,1}\bar{v}_{i-r+1}+\tilde c_{r,2}\bar{v}_{i-r+2}\\
&=&c_{r-1,0}\bar{v}_{i-r}+c_{r-1,1}\bar{v}_{i-r+1}+c_{r-1,2}\bar{v}_{i-r+2}\\
\end{array}
\]
crj(k=3)
| Text Only | |
|---|---|
1 2 3 4 5 | |
i-1/2
\[
\begin{alignat}{3}
v_{i-1/2}^{R,r=2} &= - \frac{1}{6}\bar{v}_{i-2} && + \frac{5}{6}\bar{v}_{i-1} && + \frac{1}{3}\bar{v}_{i} \\
v_{i-1/2}^{R,r=1} &= \phantom{+} \frac{1}{3}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && - \frac{1}{6}\bar{v}_{i+1} \\
v_{i-1/2}^{R,r=0} &= \phantom{+} \frac{11}{6}\bar{v}_{i} && - \frac{7}{6}\bar{v}_{i+1} && + \frac{1}{3}\bar{v}_{i+2} \\
\end{alignat}
\]
i+1/2
\[
\begin{alignat}{3}
v_{i+1/2}^{R,r=2} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{R,r=1} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2}^{R,r=0} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3} \\
\end{alignat}
\]
合在一起，有：
ui+1/2,L
\[
\begin{alignat}{3}
v_{i+1/2}^{L,r=2} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2}^{L,r=1} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{L,r=0} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
\end{alignat}
\]
ui+1/2,R
\[
\begin{alignat}{3}
v_{i+1/2}^{R,r=2} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2}^{R,r=1} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2}^{R,r=0} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3} \\
\end{alignat}
\]
在不引起混淆的情况下，从左至右计数(0,1,2),有：
ui+1/2,L
\[
\begin{alignat}{3}
v_{i+1/2,L}^{(0)} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2,L}^{(1)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2,L}^{(2)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
\end{alignat}
\]
ui+1/2,R
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(0)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2,R}^{(1)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2,R}^{(2)} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3} \\
\end{alignat}
\]
从另一个角度看：
Left side
\[
\{V_{1},V_{2},V_{3},V_{4},V_{5}\}
= \{\bar{v}_{i-2},\bar{v}_{i-1},\bar{v}_{i},\bar{v}_{i+1},\bar{v}_{i+2}\}\\
\]
\[
\begin{alignat}{3}
v_{i+1/2,L}^{(0)} &= \phantom{+} \frac{1}{3}V_{1} && - \frac{7}{6}V_{2} && + \frac{11}{6}V_{3} \\
v_{i+1/2,L}^{(1)} &= - \frac{1}{6}V_{2} && + \frac{5}{6}V_{3} && + \frac{1}{3}V_{4} \\
v_{i+1/2,L}^{(2)} &= \phantom{+} \frac{1}{3}V_{3} && + \frac{5}{6}V_{4}&& - \frac{1}{6}V_{5} \\
\end{alignat}
\]
Right side
\[
\{W_{1},W_{2},W_{3},W_{4},W_{5}\}
= \{\bar{v}_{i-1},\bar{v}_{i},\bar{v}_{i+1},\bar{v}_{i+2},\bar{v}_{i+3}\}\\
\]
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(0)} &= - \frac{1}{6}W_{1} && + \frac{5}{6}W_{2} && + \frac{1}{3}W_{3} \\
v_{i+1/2,R}^{(1)} &= \phantom{+} \frac{1}{3}W_{2} && + \frac{5}{6}W_{3} && - \frac{1}{6}W_{4} \\
v_{i+1/2,R}^{(2)} &= \phantom{+} \frac{11}{6}W_{3} && - \frac{7}{6}W_{4} && + \frac{1}{3}W_{5} \\
\end{alignat}
\]
已知：
ui+1/2,R
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(0)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2,R}^{(1)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2,R}^{(2)} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3} \\
\end{alignat}
\]
对其进行重新排列：
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(2)} &= \phantom{+} \frac{11}{6}\bar{v}_{i+1} && - \frac{7}{6}\bar{v}_{i+2} && + \frac{1}{3}\bar{v}_{i+3} \\
v_{i+1/2,R}^{(1)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
v_{i+1/2,R}^{(0)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
\end{alignat}
\]
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(2)} &= \phantom{+}\frac{1}{3}\bar{v}_{i+3} &&- \frac{7}{6}\bar{v}_{i+2} &&+ \frac{11}{6}\bar{v}_{i+1} \\
v_{i+1/2,R}^{(1)} &= - \frac{1}{6}\bar{v}_{i+2}&&+ \frac{5}{6}\bar{v}_{i+1}&&+\frac{1}{3}\bar{v}_{i} \\
v_{i+1/2,R}^{(0)} &= \phantom{+}\frac{1}{3}\bar{v}_{i+1}&&+ \frac{5}{6}\bar{v}_{i}&&- \frac{1}{6}\bar{v}_{i-1} \\
\end{alignat}
\]
对比
ui+1/2,L
\[
\begin{alignat}{3}
v_{i+1/2,L}^{(0)} &= \phantom{+} \frac{1}{3}\bar{v}_{i-2} && - \frac{7}{6}\bar{v}_{i-1} && + \frac{11}{6}\bar{v}_{i} \\
v_{i+1/2,L}^{(1)} &= - \frac{1}{6}\bar{v}_{i-1} && + \frac{5}{6}\bar{v}_{i} && + \frac{1}{3}\bar{v}_{i+1} \\
v_{i+1/2,L}^{(2)} &= \phantom{+} \frac{1}{3}\bar{v}_{i} && + \frac{5}{6}\bar{v}_{i+1} && - \frac{1}{6}\bar{v}_{i+2} \\
\end{alignat}
\]
我们发现这两个的插值系数完全一致，也就是说具备对称性，这和我们的理解是一致的。 也就是说，如果对于ui+1/2,R，从右向左计数，和ui+1/2,L从左向右计数的物理规律完全一致。
\[
\{U_{1},U_{2},U_{3},U_{4},U_{5}\}
= \{\bar{v}_{i+3},\bar{v}_{i+2},\bar{v}_{i+1},\bar{v}_{i},\bar{v}_{i-1},\bar{v}_{i-2}\}\\
\]
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(2)} &= \phantom{+}\frac{1}{3}U_{1} &&- \frac{7}{6}U_{2} &&+ \frac{11}{6}U_{3} \\
v_{i+1/2,R}^{(1)} &= - \frac{1}{6}U_{2}&&+ \frac{5}{6}U_{3}&&+\frac{1}{3}U_{4} \\
v_{i+1/2,R}^{(0)} &= \phantom{+}\frac{1}{3}U_{3}&&+ \frac{5}{6}U_{4}&&- \frac{1}{6}U_{5} \\
\end{alignat}
\]
\[
\begin{alignat}{3}
v_{i+1/2,R}^{(0')} &= \phantom{+}\frac{1}{3}U_{1} &&- \frac{7}{6}U_{2} &&+ \frac{11}{6}U_{3} \\
v_{i+1/2,R}^{(1')} &= - \frac{1}{6}U_{2}&&+ \frac{5}{6}U_{3}&&+\frac{1}{3}U_{4} \\
v_{i+1/2,R}^{(2')} &= \phantom{+}\frac{1}{3}U_{3}&&+ \frac{5}{6}U_{4}&&- \frac{1}{6}U_{5} \\
\end{alignat}
\]
对比
Left side
\[
\{V_{1},V_{2},V_{3},V_{4},V_{5}\}
= \{\bar{v}_{i-2},\bar{v}_{i-1},\bar{v}_{i},\bar{v}_{i+1},\bar{v}_{i+2}\}\\
\]
\[
\begin{alignat}{3}
v_{i+1/2,L}^{(0)} &= \phantom{+} \frac{1}{3}V_{1} && - \frac{7}{6}V_{2} && + \frac{11}{6}V_{3} \\
v_{i+1/2,L}^{(1)} &= - \frac{1}{6}V_{2} && + \frac{5}{6}V_{3} && + \frac{1}{3}V_{4} \\
v_{i+1/2,L}^{(2)} &= \phantom{+} \frac{1}{3}V_{3} && + \frac{5}{6}V_{4}&& - \frac{1}{6}V_{5} \\
\end{alignat}
\]
ui+1/2,L,R
\[
\begin{array}{l}
\displaystyle{v}^{r}_{i+\frac{1}{2},L}=\sum_{j=0}^{k-1}c_{rj}\bar{v}_{i-r+j},\quad r=0,\dots,k-1\\
\displaystyle{v}^{r}_{i+\frac{1}{2},R}=\sum_{j=0}^{k-1}\tilde c_{rj}\bar{v}_{i+1-r+j},\quad r=0,\dots,k-1\\
\end{array}
\]
WENO reconstruction would take a convex combination of all \( v_{i+\frac{1}{2},L}^{(r)} \) as a new approximation to the cell boundary value \( v(x_{i+\frac{1}{2}}) \):
\[
\quad v_{i+\frac{1}{2},L} = \sum_{r=0}^{k-1} \omega_r v_{i+\frac{1}{2},L}^{(r)},\quad r=0,\dots,k-1
\]
Apparently, the key to the success of WENO would be the choice of the weights \( \omega_r \). We require
\[
\quad \omega_r \geq 0, \quad \sum_{r=0}^{k-1} \omega_r = 1
\]
for stability and consistency.
If the function \( v(x) \) is smooth in all of the candidate stencils, there are constants \( d_r \) such that
\[
\quad v_{i+\frac{1}{2}} = \sum_{r=0}^{k-1} d_r v_{i+\frac{1}{2}}^{(r)} = v(x_{i+\frac{1}{2}}) + O(\Delta x^{2k-1}).
\]
For example, \( d_r \) for \( 1 \leq k \leq 3 \) are given by
\[
\begin{align*}
d_0 &= 1, \quad k = 1; \\
d_0 &= \frac{2}{3}, \, d_1 = \frac{1}{3}, \quad k = 2; \\
d_0 &= \frac{3}{10}, \, d_1 = \frac{3}{5}, \, d_2 = \frac{1}{10}, \quad k = 3.
\end{align*}
\]
We can see that \( d_r \) is always positive and, due to consistency,
\[
\quad \sum_{r=0}^{k-1} d_r = 1.
\]
For \( k = 2 \):
\[
\quad
\begin{align*}
\beta_0 &= (\overline{v}_{i+1} - \overline{v}_i)^2, \\
\beta_1 &= (\overline{v}_i - \overline{v}_{i-1})^2.
\end{align*}
\]
For \( k = 3 \):
\[
\quad
\begin{align*}
\beta_0 &= \frac{13}{12}(\overline{v}_i - 2\overline{v}_{i+1} + \overline{v}_{i+2})^2 + \frac{1}{4}(3\overline{v}_i - 4\overline{v}_{i+1} + \overline{v}_{i+2})^2, \\
\beta_1 &= \frac{13}{12}(\overline{v}_{i-1} - 2\overline{v}_i + \overline{v}_{i+1})^2 + \frac{1}{4}(\overline{v}_{i-1} - \overline{v}_{i+1})^2, \\
\beta_2 &= \frac{13}{12}(\overline{v}_{i-2} - 2\overline{v}_{i-1} + \overline{v}_i)^2 + \frac{1}{4}(\overline{v}_{i-2} - 4\overline{v}_{i-1} + 3\overline{v}_i)^2.
\end{align*}
\]
\[
\begin{align*}
\alpha_r &= \frac{d_r}{(\epsilon + \beta_r)^2}, \quad r = 0, \dots, k-1 \\
\omega_r &= \frac{\alpha_r}{\displaystyle\sum_{s=0}^{k-1} \alpha_s}, \quad r = 0, \dots, k-1 \\
\end{align*}
\]
\[
\begin{align*}
\beta_0^R &= \frac{13}{12}(\overline{v}_{i+1} - 2\overline{v}_{i+2} + \overline{v}_{i+3})^2 + \frac{1}{4}(3\overline{v}_{i+1} - 4\overline{v}_{i+2} + \overline{v}_{i+3})^2, \\
\beta_1^R &= \frac{13}{12}(\overline{v}_i - 2\overline{v}_{i+1} + \overline{v}_{i+2})^2 + \frac{1}{4}(\overline{v}_i - \overline{v}_{i+2})^2, \\
\beta_2^R &= \frac{13}{12}(\overline{v}_{i-1} - 2\overline{v}_i + \overline{v}_{i+1})^2 + \frac{1}{4}(\overline{v}_{i-1} - 4\overline{v}_i + 3\overline{v}_{i+1})^2.
\end{align*}
\]
Left side
\[
\{V_{1},V_{2},V_{3},V_{4},V_{5}\}
= \{\bar{v}_{i-2},\bar{v}_{i-1},\bar{v}_{i},\bar{v}_{i+1},\bar{v}_{i+2}\}\\
\]
\[
\begin{align*}
\beta_0 &= \frac{13}{12}(V_{3} - 2V_{4} + V_{5})^2 + \frac{1}{4}(3V_{3} - 4V_{4} + V_{5})^2, \\
\beta_1 &= \frac{13}{12}(V_{2} - 2V_{3} + V_{4})^2 + \frac{1}{4}(V_{2} - V_{4})^2, \\
\beta_2 &= \frac{13}{12}(V_{1} - 2V_{2} + V_{3})^2 + \frac{1}{4}(V_{1} - 4V_{2} + 3V_{3})^2
\end{align*}
\]
Right side
\[
\{W_{1},W_{2},W_{3},W_{4},W_{5}\}
= \{\bar{v}_{i-1},\bar{v}_{i},\bar{v}_{i+1},\bar{v}_{i+2},\bar{v}_{i+3}\}\\
\]
\[
\begin{align*}
\beta_0^R &= \frac{13}{12}(W_{3} - 2W_{4} + W_{5})^2 + \frac{1}{4}(3W_{3} - 4W_{4} + W_{5})^2, \\
\beta_1^R &= \frac{13}{12}(W_{2} - 2W_{3} + W_{4})^2 + \frac{1}{4}(W_{2} - W_{4})^2, \\
\beta_2^R &= \frac{13}{12}(W_{1} - 2W_{2} + W_{3})^2 + \frac{1}{4}(W_{1} - 4W_{2} + 3W_{3})^2.
\end{align*}
\]
